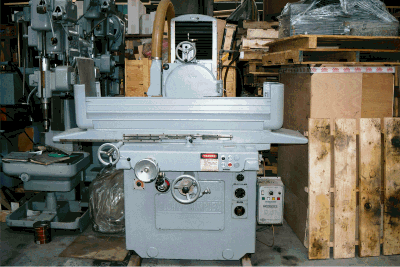

12" x 28" BLOHM-SIMPLEX MODEL 7 2-AXIS SURFACE GRINDER
MANUFACTURED 1965
- Table size......................................................12" x 28"
Hydraulic table travel (long.).........................30"
Hydraulic table travel (cross).........................14"
Standard wheel size......................................12" x 1" x 3"
Longitudinal table speeds..............................3" to 150' per min.
Vertical movement of wheelhead..................16"
Maximum distance from spindle to table.......23"
Spindle drive motor.......................................5 hp
Hydraulic pump motor...................................1.5 hp
Connected.....................................................440/60/3
- Equipped with:
- 12" x 28" Electromagnetic chuck and controls
Over-the-wheel dresser
Coolant system
Dust collector system
Parts manuals and original documentation
Automatic lubrication
Cleaned, cycled, and painted - 12" x 28" Electromagnetic chuck and controls
Fob Alenco
