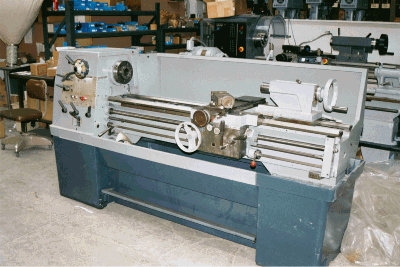

15" x 50" CLAUSING/COLCHESTER GEARED HEAD ENGINE LATHE
MANUFACTURED 1972
- Swing over bed.............................................15"
Swing over cross slide..................................9-1/2"
Distance between centers.............................50"
Hole thru spindle...........................................2.125"
Spindle speeds (16).......................................25 - 2,000 rpm
Threads - U.S. (45).........................................2 - 72 TPI
Threads - Metric (39)......................................0.2 - 14 MM
Spindle nose.................................................D1-6
Main drive motor...........................................7-1/2 hp
Connected.....................................................220/60/3
- Equipped with:
- Hardened and ground bed ways
Forward and reversing clutches
8" 3-jaw chuck
12" 4-jaw chuck
Taper attachment
Cleaned, cycled and painted - Hardened and ground bed ways
FOB Alenco
