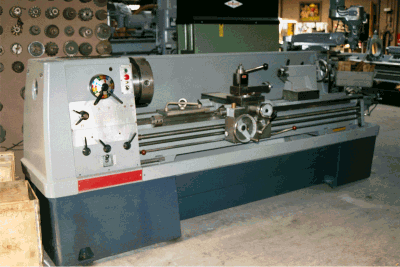

21" X 80" CLAUSING/COLCHESTER STRAIGHT BED ENGINE LATHE
MANUFACTURED 1979
Swing over bed..............................................21"
Swing over cross slide...................................14-1/2"
Distance between centers..............................80"
Hole thru spindle...........................................3-9/16"
Spindle speeds (16).......................................18 - 1,400 rpm
Threads - U.S. (38)........................................ 2 - 72 TPI
Threads - Metric (40).....................................4 - 14 MM
Spindle nose................................................D1-11
Main drive motor..........................................12-1/2 hp
Connected....................................................230/60/3
- Equipped with:
- Hardened and ground bed ways
- 15" 3-jaw universal chuck w/2 piece jaws
- 5 position bed stop
- Coolant system
- Aloris CA quick change tool post
- Cleaned, cycled and painted
- 15" 3-jaw universal chuck w/2 piece jaws
FOB Alenco
