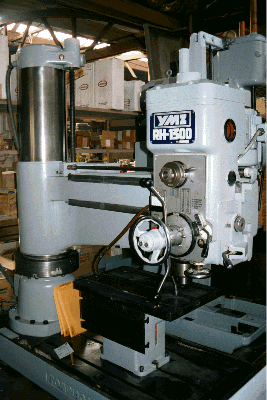

YMZ (Yamazen)/TOMIGAGA 4' X 14" RADIAL ARM DRILL
MANUFACTURED 1983
- Column diameter.............................14-1/8"
Max. distance column to spindle......51.5"
Min. distance column to spindle.......14-1/8"
Spindle speeds (12)...........................40 - 2,010 rpm
Spindle feed rates (6)........................0.003 - 0.04 in/rev
Spindle nose.....................................5 MT
Spindle diameter..............................3.5"
Box table..........................................23.5" x 19.75" x 15.75"
Main drive motor..............................7.5 hp
Connected........................................230/60/3- Equipped with:
- Power clamping and power elevation
Ampere load meter
Fully clutched headstock - forward and reverse
Coolant system
Manuals
Cleaned, cycled, and painted
PRICE: $ 11,500.00
FOB Alenco
