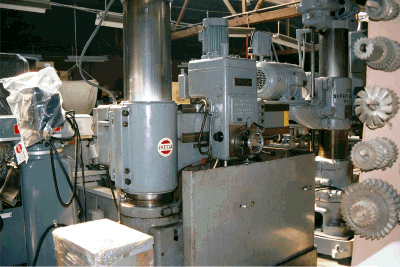

- KEDA 4' X 13" RADIAL ARM
DRILL
MANUFACTURED 1969
-
|
- Column diameter.............................................13
Max. distance column to spindle.....................51.5"
Min. distance column to spindle......................14-1/8"
Spindle speeds (12).........................................30
- 1,440 rpm
Spindle feed rates (4)......................................0.004
- 0.021 in/rev
Spindle nose...................................................5
MT
Spindle diameter............................................3.5"
Box table........................................................27"
X 18" x 15.75"
Main drive motor............................................5
hp
Connected......................................................230/60/3
|
- Equipped with:
- Power clamping and power
elevation
Coolant system
Chip guard
Cleaned and cycled
|
- PRICE: $ 11,500.00
- FOB Alenco
|
