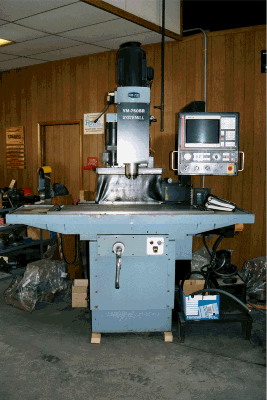

NC SYSTEMS MODEL #VM-750 (KASUGA) 3-AXIS CNC MILL WITH FAGOR MODEL 8030 CONTROL
MANUFACTURED 1992
- Taper.............................................................#40 CAT
Table size......................................................18" x 55"
Longitudinal traverse.....................................31"
Cross traverse................................................17"
Knee traverse................................................16.5"
Quill travel.....................................................6.5"
Quill diameter................................................4.5"
Spindle speeds (programmable)....................50 - 4,000 rpm
Contouring feed rate......................................0 - 300 ipm
Main drive motor............................................7.5 hp
Connected......................................................230/60/3- Equipped with:
- Power draw bar
Power knee elevation
Coolant system
Control manuals
Cleaned and cycled
PRICE: $ 17,500.00
FOB Alenco
