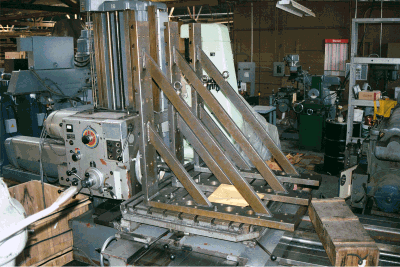

3-1/8" TOS HORIZONTAL BORING MILL MODEL #WH80
MANUFACTURED 1967
Taper.................................................................#5 M.T.
Diameter of spindle...........................................3-1/8"
Longitudinal traverse........................................49"
Cross traverse...................................................49"
Vertical traverse...............................................37"
Quill travel.......................................................28"
Spindle speeds................................................14 - 1,400 rpm
Rotary table size..............................................44" x 39"
Main drive motor.............................................10 hp
Connected.......................................................230/60/3
- Equipped with:
- Anilam 3-axis DRO - X,Y,Z
Tailstock with power elevation
Facing head with holders
Spindle support bearing
Vertical milling head - Anilam 3-axis DRO - X,Y,Z
-
- Coolant
- Large assortment of holders
- 3- T-slotted angle plates
- Manuals
- Cleaned and cycled
- Coolant
- Equipped with:
FOB Alenco
