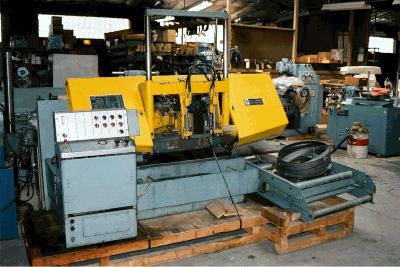

15" x 16" W.F. WELLS #F-15-II TWIN POST HYDRAULIC AUTOMATIC BAND SAW
MANUFACTURED 1979
- Capacity @ 90 degrees................................15"
x 16"
Capacity @ 45 degrees................................15" x 9"
Weight capacity...........................................12,000 lbs
Blade size....................................................1-1/4" x .035" x 14'5"
Blade speed (infinitely variable)..................55 to 385 fpm
Sawing force...............................................30 to 300 lbs
Hydraulic shuttle feed..................................0 - 22"
Saw head cycle time (raise)........................17" in 4 seconds
Drive motor..................................................3 hp
Hydraulic motor...........................................2 hp
Connected...................................................230/60/3
- Equipped with:
- Automatic shuttle feed
Hydraulic blade tensioning
24" x 10' infeed roller table
20" x 48" discharge table
Coolant system - Automatic shuttle feed
-
- Control console
- Chip pan
- Manuals
- Cleaned and cycled
- Control console
- Equipped with:
FOB Alenco
